BAOSHISHAN Cans Vacuum Gauge Vacuum Tester Measuring Range of -0.1-0Mpa for Measuring Canned Products (Short Bottle)

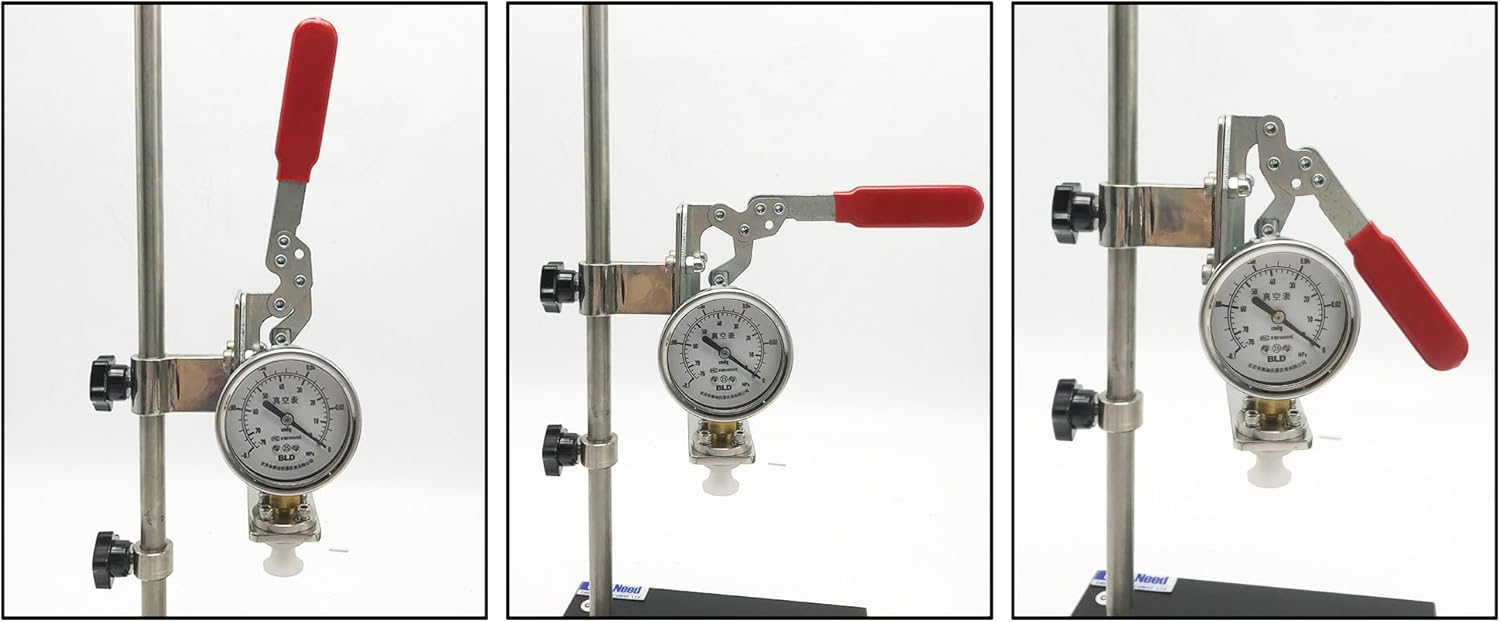

BAOSHISHAN Product Description The CVG is used to puncture the seamed can through the top of the can with the piercing needle, the rubber collar forming a temporary seal to allow for measurement, and the vacuum gauge indicates the vacuum pressure of the can Technical parameter 1.Measuring range:-0.1-0Mpa Equal to -15-0 Psi 2.Resolution:0.005Mpa 3.Precision:±2.5% (i.e.±0.0025Mpa ) Operation method of CVG-200 1.Put the can on the test platform, hold it by your left hand; 2.Unscrew the tightening screw, adjust the distance between the piercing head (with rubber collar) and the sample can; 3.Adjust until the distance between the rubber collar and the sample can is 2-3mm, and the red handle is parallel the base; 4.Hold the sample can by your left hand,depress the handle by your right hand and the piercing needle is forced through the top of the can.The rubber collar forms a temporary seal to allow for measurement (the handle can be released). The vacuum pressure and read the value when the pointer become stable. Maintenance 1.After measuring a batch of sample,rinse the piercing head with clean water and do not leave any solid substances or liquid (except clean eater) 2.When the vacuum gauge is not working, it is suggested to put the rubber collar on the piercing head for protection. Warranty We provide one year warranty, the specifics are: 1.Within one year after receiving the product, we will provide professional technical support and free replacements, consumables are not included. 2.Even after the one-year warranty, as long as you buy it in our store, we will provide technical support, but replacements are charged.

• [Working principle]--CVG-200 Cans Vacuum Degree Tester/Gauge used to measure internal negative pressure value of the can . Its working principle is using the steel needle pierced the cover, at the same time use the soft silicone gasket to ensure no leakage, steel needle connect with the vacuum gauge to get a tank vacuum values.
• [Precision:±2.5%]--Due to the inner diameter of the needle path only 0.6 mm, reduce the error produced by the connect channels, make the gauge readings closer to the real value of the tank.
• [Advantage]--Use desktop table base and the lever handle, through fixed vacuum gauge instead not force, can easily to measure , also don’t effect the pointer readings by force , herefore more accurate, easier to operate than a hand-held vacuum gauge.
• [Application]--Cans Vacuum Degree Tester is widely used in the Canned food industry , bear industry , soft drink industry.
• [Measuring range of -0.1-0Mpa]--Warning: this unit is only applicable for measuring the vacuum pressure within the range of -0.1-0Mpa.
